MC9S08SC4 Datasheet - Motorola

MC9S08SC4 - 8-Bit Microcontroller

Freescale Semiconductor Data Sheet: Technical Data Document Number: MC9S08SC4 Rev.

4, 6/2010 www.DataSheet4U.com MC9S08SC4 8-Bit Microcontroller Data Sheet MC9S08SC4 948F-01 8-Bit HCS08 Central Processor Unit (CPU) Up to 40 MHz HCS08 CPU (central processor unit); up to 20 MHz bus frequency HC08 instruction set with added BGND instruction 4 KB of FLASH with read/program/erase over full operating voltage and temperature 256

MC9S08SC4 Features

* o VDD Digital input voltage Instantaneous maximum current Single pin limit (applies to all port pins)1, 2, 3 Storage temperature range 1 Symbol VDD IDD VIn ID Tstg Value

* 0.3 to +5.8 120

* 0.3 to VDD + 0.3 ± 25

* 55 to 150 Unit V m

MC9S08SC4_Motorola.pdf

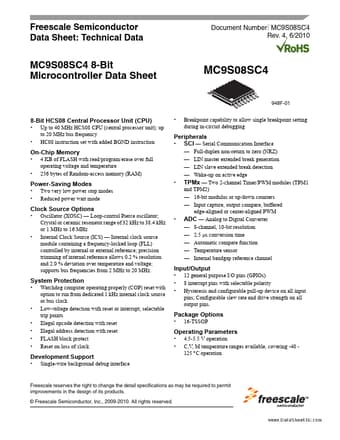

Preview of MC9S08SC4 PDF
MC9S08SC4 Datasheet Preview Page 2 MC9S08SC4 Datasheet Preview Page 3

Datasheet Details

Part number:

MC9S08SC4

Manufacturer:

Motorola

File Size:

664.60 KB

Description:

8-bit microcontroller.
