MCM64PD32 Datasheet - Motorola

MCM64PD32 256K/512K Pipelined BurstRAM Secondary Cache Module for Pentium

160 *Lead Card Edge Pin Locations 20, 21, 22, 23, 24, 26, 28, 29, 101, 102, 103, 104, 106, 108, 109, 110 30 Symbol A3 * A18 ADSP Type Input Input Description Address Inputs: These inputs are registered into data RAMs and must meet setup and hold times. The tag RAM addresses are not r.

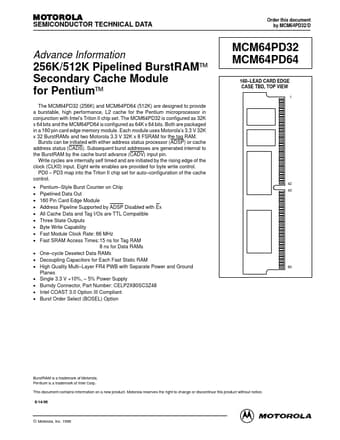

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MCM64PD32/D Advance Information 256K/512K Pipelined BurstRAM™ Secondary Cache Module for Pentium™ The MCM64PD32 (256K) and MCM64PD64 (512K) are designed to provide a burstable, high performance, L2 cache for the Pentium microprocessor in conjunction with Intel’s Triton II chip set. The MCM64PD32 is configured as 32K x 64 bits and the MCM64PD64 is configured as 64K x 64 bits. Both are packaged in a 160 pin card edge memory module. E.

MCM64PD32 Features

* meet the dc and ac specifications shown in the tables, after thermal equilibrium has been established. This device contains circuitry that will ensure the output devices are in High

* Z at power up. Tstg

* 65 to + 150 °C NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RAT

MCM64PD32_MotorolaInc.pdf

MCM64PD32 Datasheet Preview — Preview of MCM64PD32 PDF

Datasheet Details

Part number:

MCM64PD32

Manufacturer:

Motorola

File Size:

184.00 KB

Description:

256k/512k pipelined burstram secondary cache module for pentium.
