MCM64PE64, MCM64PE64SDG66 Datasheet - Motorola

MCM64PE64 256K/512K Pipelined BurstRAM Secondary Cache Module for Pentium

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Advance Information 256K/512K Pipelined BurstRAM™ Secondary Cache Module for Pentium™ The MCM64PE32 (256K) and MCM64PE64 (512K) are designed to provide a burstable, high performance, L2 cache for the Pentium microprocessor in conjunction with Intel’s Triton II chip set. The MCM64PE32 is configured as 32K x 64 bits and the MCM64PE64 is configured as 64K x 64 bits. Both are packaged in a 160 pin card edge memory module. The MCM64PE32 module uses Motorola’s 3.3.

MCM64PE64SDG66_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MCM64PE64, MCM64PE64SDG66. Please refer to the document for exact specifications by model.

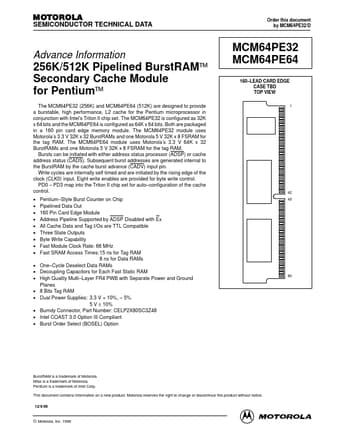

MCM64PE64 Datasheet Preview Page 2 MCM64PE64 Datasheet Preview Page 3

Datasheet Details

Part number:

MCM64PE64, MCM64PE64SDG66

Manufacturer:

Motorola

File Size:

161.32 KB

Description:

256k/512k pipelined burstram secondary cache module for pentium.

Note:

This datasheet PDF includes multiple part numbers: MCM64PE64, MCM64PE64SDG66.
Please refer to the document for exact specifications by model.
