MCM64PE32 Datasheet - Motorola

MCM64PE32 256K/512K Pipelined BurstRAM Secondary Cache Module for Pentium

160 *Lead Card Edge Pin Locations 20, 21, 22, 23, 24, 26, 28, 29, 101, 102, 103, 104, 106, 108, 109, 110 30 Symbol A3 * A18 ADSP Type Input Input Description Address Inputs: These inputs are registered into data RAMs and must meet setup and hold times. The tag RAM addresses are not r.

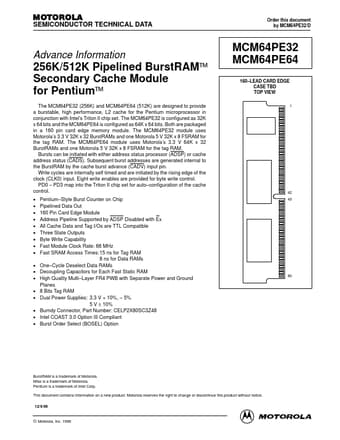

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MCM64PE32/D Advance Information 256K/512K Pipelined BurstRAM™ Secondary Cache Module for Pentium™ The MCM64PE32 (256K) and MCM64PE64 (512K) are designed to provide a burstable, high performance, L2 cache for the Pentium microprocessor in conjunction with Intel’s Triton II chip set. The MCM64PE32 is configured as 32K x 64 bits and the MCM64PE64 is configured as 64K x 64 bits. Both are packaged in a 160 pin card edge memory module. T.

MCM64PE32 Features

* up. Storage Temperature Tstg

* 55 to + 125 °C NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could aff

MCM64PE32 Datasheet (161.32 KB)

MCM64PE32 Datasheet Preview — Preview of MCM64PE32 PDF

Datasheet Details

Part number:

MCM64PE32

Manufacturer:

Motorola

File Size:

161.32 KB

Description:

256k/512k pipelined burstram secondary cache module for pentium.
