MCR218-2FP, MCR218FP Datasheet - Motorola

MCR218-2FP, MCR218FP, Silicon Controlled Rectifiers

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Silicon Controlled Rectifiers Reverse Blocking Thyristors ...designed primarily for half-wave ac control appl.

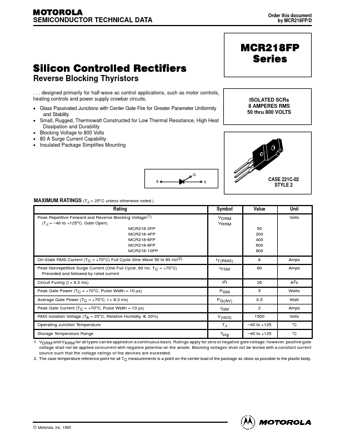

 datasheet Preview Page 1 from Datasheet4u.com

MCR218FP_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MCR218-2FP, MCR218FP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MCR218-2FP, MCR218FP

Manufacturer:

Motorola

File Size:

123.96 KB

Description:

Silicon Controlled Rectifiers

Note:

This datasheet PDF includes multiple part numbers: MCR218-2FP, MCR218FP.
Please refer to the document for exact specifications by model.

Applications

* such as motor controls, heating controls and power supply crowbar circuits.
* Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability
* Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability
