MCR218-3, MCR218 Datasheet - Motorola

MCR218-3 Thyristors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Thyristors Silicon-Controlled Rectifiers . . . designed primarily for half-wave ac control applications, such as motor controls, heating controls and power supplies; or wherever half-wave silicon gate-controlled, solid-state devices are needed. Glass-Passivated Junctions Blocking Voltage to 800 Volts TO-220 Construction Low Thermal Resistance, High Heat Dissipation and Durability Order this document by MCR218/D MCR218.

MCR218_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MCR218-3, MCR218. Please refer to the document for exact specifications by model.

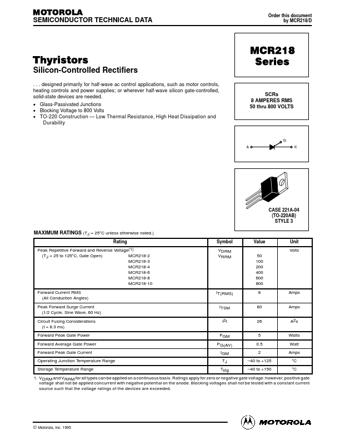

MCR218-3 Datasheet Preview Page 2 MCR218-3 Datasheet Preview Page 3

Datasheet Details

Part number:

MCR218-3, MCR218

Manufacturer:

Motorola

File Size:

83.71 KB

Description:

Thyristors.

Note:

This datasheet PDF includes multiple part numbers: MCR218-3, MCR218.
Please refer to the document for exact specifications by model.
