MHW8242 Datasheet - Motorola

MHW8242 24 dB GAIN 860 MHz 128-CHANNEL CATV AMPLIFIER

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MHW8242/D The RF Line 128-Channel (860 MHz) CATV Line Extender Amplifier Specified for 128 Channel Performance Broadband Power Gain  @ f = 40 860 MHz Gp = 24 dB (Typ) Broadband Noise Figure NF = 7.5 dB (Max) @ 860 MHz Superior Gain, Return Loss and DC Current Stability with Temperature All Gold Metallization 7 GHz fT Ion Implanted Transistors MHW.

MHW8242_MotorolaInc.pdf

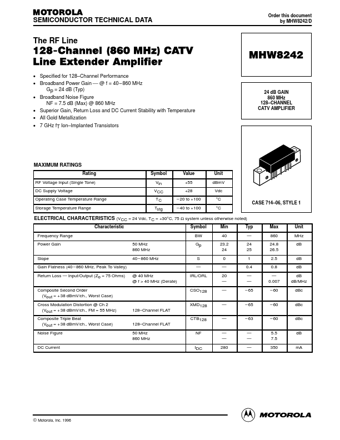

Preview of MHW8242 PDF
MHW8242 Datasheet Preview Page 2

Datasheet Details

Part number:

MHW8242

Manufacturer:

Motorola

File Size:

46.97 KB

Description:

24 db gain 860 mhz 128-channel catv amplifier.
