MHW8247A - Gallium Arsenide CATV Amplifier Module

Motorola

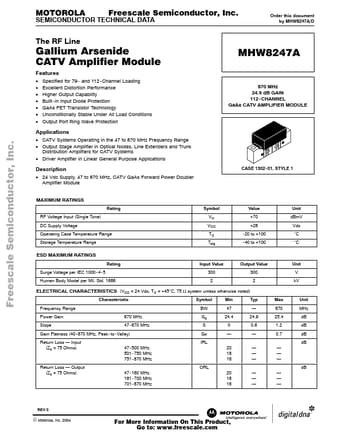

MHW8247A Datasheet Preview — Preview of MHW8247A PDF

Datasheet Details

Part number	MHW8247A
Manufacturer	Motorola
File Size	245.01 KB
Description	Gallium Arsenide CATV Amplifier Module
Datasheet	MHW8247A_MotorolaInc.pdf

MHW8247A Product details

Description

24 Vdc Supply, 47 to 870 MHz, CATV GaAs Forward Power Doubler Amplifier Module MAXIMUM RATINGS Rating RF Voltage Input (Single Tone) DC Supply Voltage Operating Case Temperature Range Storage Temperature Range Symbol Vin VCC TC Tstg CASE 1302 - 01, STYLE 1 Value +70 +28 - 20 to +100 - 40 to +100 Unit dBmV Vdc °C °C ESD MAXIMUM RATINGS Rating Surge Voltage per IEC 1000 - 4 - 5 Human Body Model per Mil.Std.1686 Input Value 300 2 Output Value 300 2 Unit V kV ELECTRICAL CHARACTERIST

Features

Specified for 79 - and 112 - Channel Loading Excellent Distortion Performance Higher Output Capability Built - in Input Diode Protection GaAs FET Transistor Technology Unconditionally Stable Under All Load Conditions Output Port Ring Wave Protection MHW8247A 870 MHz 24.9 dB GAIN 112 -.
