MJE200 Datasheet - Motorola

MJE200 5 AMPERE POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MJE200/D Complementary Silicon Power Plastic Transistors . . . designed for low voltage, low power, high gain audio amplifier applications. Collector Emitter Sustaining Voltage VCEO(sus) = 25 Vdc (Min) @ IC = 10 mAdc High DC Current Gain hFE = 70 (Min) @ IC = 500 mAdc High DC Current Gain hFE = 45 (Min) @ IC = 2.0 Adc High DC Current Gain hFE = 10 (M.

MJE200_MotorolaInc.pdf

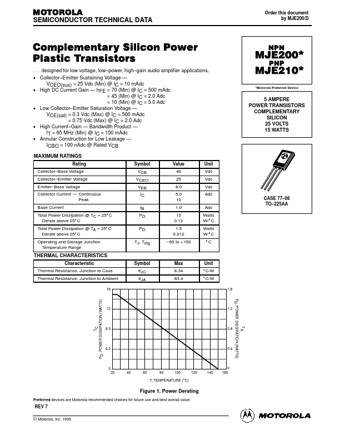

Preview of MJE200 PDF
MJE200 Datasheet Preview Page 2 MJE200 Datasheet Preview Page 3

Datasheet Details

Part number:

MJE200

Manufacturer:

Motorola

File Size:

255.73 KB

Description:

5 ampere power transistors.
