MMBT2222AWT1, General Purpose Transistor

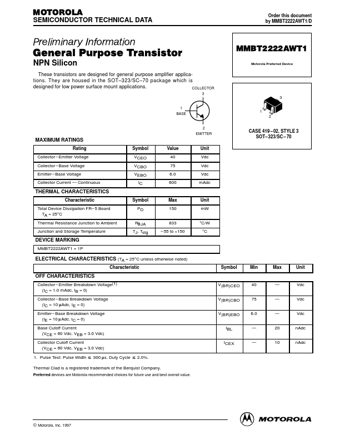

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Preliminary Information Order this document by MMBT2222AWT1/D General Purpose Transistor NPN Silicon These transistors are designed for general purpose amplifier applications.

They are housed in the SOT 323/SC 70 package which is designed for low power surface mount applications.

COLLECTOR 3 MMBT2222AWT1 Motorola Preferred Device 3 1 BASE 2 EMITTER 1 2 MAXIMUM RATINGS Rating Collector Emitter Voltage Collector Base
