MRA10007L Datasheet - Motorola

MRA10007L UHF POWER TRANSISTOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRA1000 7L/D The RF Line UHF Power Transistor . . . designed primarily for wideband, large signal output and driver amplifier stages to 1000 MHz. Designed for Class A Linear Power Amplifiers Specified 19 Volt, 1000 MHz Characteristics: Output Power 7.0 Watts Power Gain 9.0 dB Min, Small Signal Built In Matching Network for Broadband Operation .

MRA10007L_Motorola.pdf

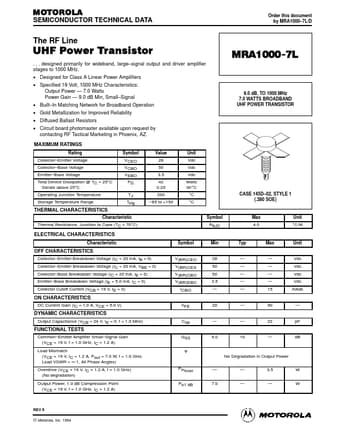

Preview of MRA10007L PDF
MRA10007L Datasheet Preview Page 2

Datasheet Details

Part number:

MRA10007L

Manufacturer:

Motorola

File Size:

50.48 KB

Description:

Uhf power transistor.
