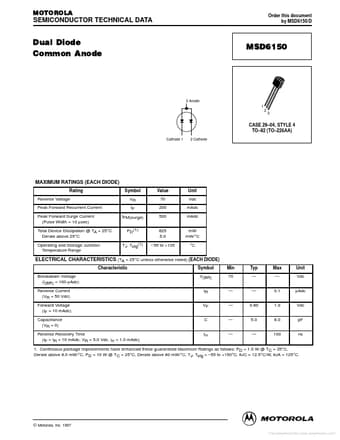

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MSD6150/D Dual Diode Common Anode MSD6150 3 Anode 1 2 3 CASE 29 04, STYLE 4 TO 92 (TO 226AA) Cathode 1 2 Cathode MAXIMUM RATINGS (EACH DIODE) Rating Reverse Voltage Peak Forward Recurrent Current Peak Forward Surge Current (Pulse Width = 10 µsec) Total Device Dissipation @ TA = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VR IF IFM(surge) PD(1) TJ, Tstg(1) Value 70 200 50.

MSD6150_Motorola.pdf

Preview of MSD6150 PDF
MSD6150 Datasheet Preview Page 2 MSD6150 Datasheet Preview Page 3

Datasheet Details

Part number:

MSD6150

Manufacturer:

Motorola

File Size:

80.83 KB

Description:

Dual diode common anode.
