SN74LS322A - 8-BIT SHIFT REGISTERS

This page provides the datasheet information for the SN74LS322A, a member of the SN74LS322DW 8-BIT SHIFT REGISTERS family.

📥 Download Datasheet

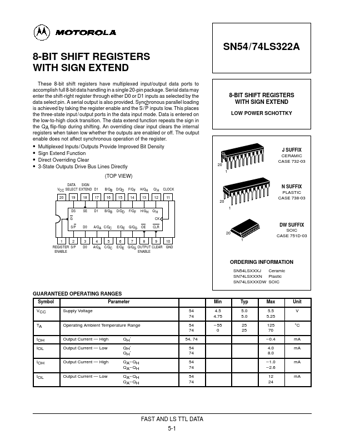

Datasheet preview – SN74LS322A

Datasheet Details

Part number SN74LS322A
Manufacturer Motorola
File Size 113.91 KB
Description 8-BIT SHIFT REGISTERS
Datasheet download datasheet SN74LS322A Datasheet
Additional preview pages of the SN74LS322A datasheet.

📁 Similar Datasheet

  • SN74LS32 - Quad 2-Input OR Gate (ON Semiconductor)
  • SN74LS32 - Quadruple 2-Input Positive-OR Gates (Texas Instruments)
  • SN74LS320 - CRYSTAL-CONTROLLED OSCILLATORS (Texas Instruments)
  • SN74LS321 - CRYSTAL-CONTROLLED OSCILLATORS (Texas Instruments)
  • SN74LS30 - 8-Input Positive-NAND Gates (Texas Instruments)
  • SN74LS31 - DELAY ELEMENTS (Texas Instruments)
  • SN74LS33 - Quadruple 2-Input Positive-NOR Buffer (Texas Instruments)
  • SN74LS340 - 8-Bit Buffers (Monolithic)
  • SN74LS347 - BCD-to-7-Segment Decoder/Driver (Texas Instruments)
  • SN74LS348 - 8-LINE TO 3-LINE PRIORITY ENCODERS (Texas Instruments)
Other Datasheets by Motorola

Full PDF Text Transcription

Click to expand full text
8-BIT SHIFT REGISTERS WITH SIGN EXTEND These 8-bit shift registers have multiplexed input/output data ports to accomplish full 8-bit data handling in a single 20-pin package. Serial data may enter the shift-right register through either D0 or D1 inputs as selected by the data select pin. A serial output is also provided. Synchronous parallel loading is achieved by taking the register enable and the S / P inputs low. This places the three-state input / output ports in the data input mode. Data is entered on the low-to-high clock transition. The data extend function repeats the sign in the QA flip-flop during shifting. An overriding clear input clears the internal registers when taken low whether the outputs are enabled or off.
