SN74LS32 - Quad 2-Input OR Gate

📥 Download Datasheet

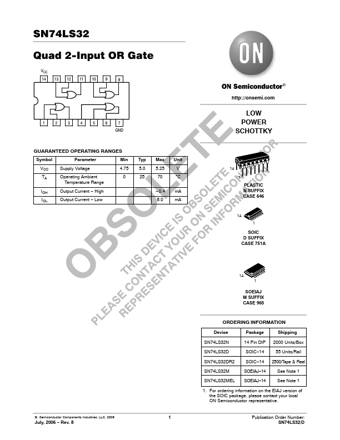

Datasheet preview – SN74LS32

Datasheet Details

Part number SN74LS32
Manufacturer ON Semiconductor
File Size 123.57 KB
Description Quad 2-Input OR Gate
Datasheet download datasheet SN74LS32 Datasheet
Additional preview pages of the SN74LS32 datasheet.

📁 Similar Datasheet

  • SN74LS32 - QUAD 2-INPUT OR GATE (Motorola)
  • SN74LS32 - Quadruple 2-Input Positive-OR Gates (Texas Instruments)
  • SN74LS320 - CRYSTAL-CONTROLLED OSCILLATORS (Texas Instruments)
  • SN74LS321 - CRYSTAL-CONTROLLED OSCILLATORS (Texas Instruments)
  • SN74LS322A - 8-BIT SHIFT REGISTERS (Motorola)
  • SN74LS323 - 8-BIT SHIFT/STORAGE REGISTER (Motorola)
  • SN74LS30 - 8-INPUT NAND GATE (Motorola)
  • SN74LS30 - 8-Input Positive-NAND Gates (Texas Instruments)
  • SN74LS31 - DELAY ELEMENTS (Texas Instruments)
  • SN74LS33 - QUAD 2-INPUT NOR BUFFER (Motorola)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
SN74LS32 Quad 2−Input OR Gate VCC 14 13 12 11 10 9 8 1234567 GND GUARANTEED OPERATING RANGES Symbol Parameter Min Typ Max Unit VCC Supply Voltage TA Operating Ambient Temperature Range 4.75 5.0 5.25 V 0 25 70 °C IOH Output Current − High IOL Output Current − Low − 0.4 8.0 mA mA http://onsemi.com LOW POWER SCHOTTKY 14 1 PLASTIC N SUFFIX CASE 646 14 1 SOIC D SUFFIX CASE 751A © Semiconductor Components Industries, LLC, 2006 July, 2006 − Rev. 8 14 1 SOEIAJ M SUFFIX CASE 965 ORDERING INFORMATION Device Package Shipping SN74LS32N 14 Pin DIP 2000 Units/Box SN74LS32D SOIC−14 55 Units/Rail SN74LS32DR2 SOIC−14 2500/Tape & Reel SN74LS32M SOEIAJ−14 See Note 1 SN74LS32MEL SOEIAJ−14 See Note 1 1.
