TIP112 Datasheet - Motorola

TIP112 DARLINGTON 2 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by TIP110/D Plastic Medium-Power Complementary Silicon Transistors . . . designed for general purpose amplifier and low speed switching applications. High DC Current Gain hFE = 2500 (Typ) @ IC = 1.0 Adc Collector Emitter Sustaining Voltage @ 30 mAdc VCEO(sus) = 60 Vdc (Min) TIP110, TIP115 VCEO(sus) = 80 Vdc (Min) TIP111, TIP116 VCEO(sus) = 100 Vdc (Min).

TIP112_MotorolaInc.pdf

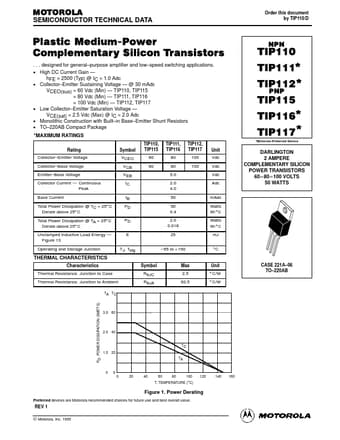

Preview of TIP112 PDF
TIP112 Datasheet Preview Page 2 TIP112 Datasheet Preview Page 3

Datasheet Details

Part number:

TIP112

Manufacturer:

Motorola

File Size:

269.52 KB

Description:

Darlington 2 ampere complementary silicon power transistors.
