TSU16AK

SXGA LCD Controller

TSU16AK Features

* Input Port Ÿ RGB analog input port Ÿ Full SOG and composite sync support, including copy protected signals Ÿ High-speed 8-bit triple-ADC with low jitter PLL operates up to 220 MHz n Display Processing Engine Ÿ Patent-pending Hybrid Image Resolution Converter Ÿ Variable sharpness control Ÿ Interlaced

TSU16AK General Description

The TSU16AK is total solution graphics processing IC for LCD monitors with panel resolutions up to SXGA. It is configured with a high-speed integrated triple-ADC/PLL, a high quality display processing engine, and an integrated output display interface that can support LVDS panel interface format. To.

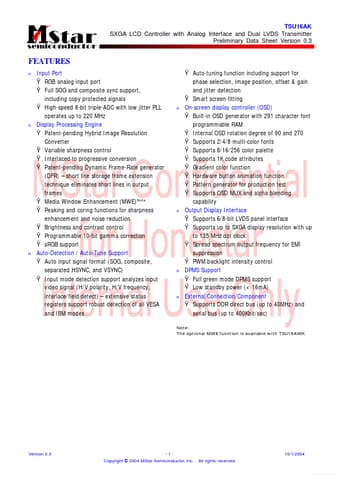

TSU16AK Datasheet (1.43 MB)

Preview of TSU16AK PDF

Datasheet Details

Part number:

TSU16AK

Manufacturer:

Mstar

File Size:

1.43 MB

Description:

Sxga lcd controller.
