TMR6206D, 6-Channels TMR PATTERN RECOGNITION SENSOR

Datasheet REVISED 08/2018 TMR6206D 6 Channels TMR PATTERN RECOGNITION SENSOR General .
The TMR6206D is a type of 6 channels magnetic pattern recognition sensor built-in the signal conditioner and SPI interface The TMR6206D consists of TM.

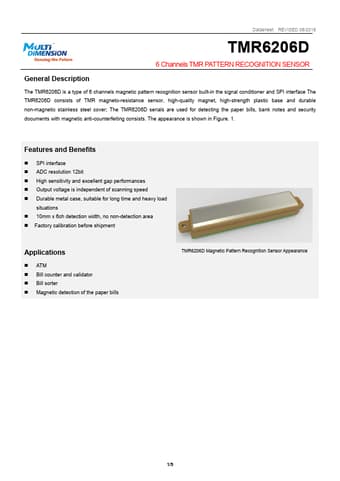

datasheet Preview Page 1 from Datasheet4u.com

TMR6206D-MultiDimension.pdf

TMR6206D Datasheet Preview — Preview of TMR6206D PDF

Datasheet Details

Part number:

TMR6206D

Manufacturer:

MultiDimension

File Size:

811.83 KB

Description:

6-Channels TMR PATTERN RECOGNITION SENSOR

Features

* SPI interface
* ADC resolution 12bit
* High sensitivity and excellent gap performances
* Output voltage is independent of scanning speed
* Durable metal case, suitable for long time and heavy load situations
* 10mm x 6ch detection width, no non-detection area
* Factory

Applications

* ATM
* Bill counter and validator
* Bill sorter
* Magnetic detection of the paper bills TMR6206D Magnetic Pattern Recognition Sensor Appearance 1/9 Connector and Pin Configuration Connector P/N: FH12A-22S-0.5SH (HRS) TMR6206D Pin Configuration： Datasheet REVISED 08/2018 Pin No.
