TMR6218LA, 18-Channels TMR Magnetic Pattern Recognition Sensor

Datasheet REVISED 08/2018 TMR6218LA 18 Channels TMR Magnetic Pattern Recognition Sensor General .
The TMR6218LA is a type of 18 channels magnetic pattern recognition sensor with high consistency, high sensitivity and high signal-to-noise ratio perf.

datasheet Preview Page 1 from Datasheet4u.com

TMR6218LA-MultiDimension.pdf

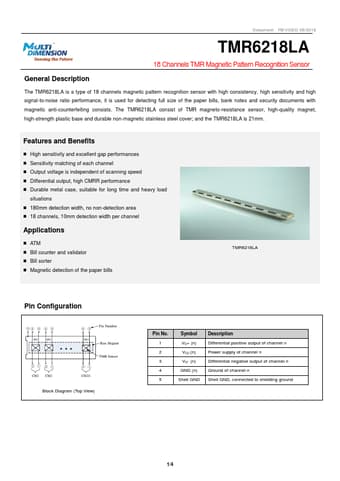

TMR6218LA Datasheet Preview — Preview of TMR6218LA PDF

Datasheet Details

Part number:

TMR6218LA

Manufacturer:

MultiDimension

File Size:

484.38 KB

Description:

18-Channels TMR Magnetic Pattern Recognition Sensor

Features

* High sensitivity and excellent gap performances
* Sensitivity matching of each channel
* Output voltage is independent of scanning speed
* Differential output, high CMRR performance
* Durable metal case, suitable for long time and heavy load situations
* 180mm detection wid

Applications

* ATM
* Bill counter and validator
* Bill sorter
* Magnetic detection of the paper bills TMR6218LA Pin Configuration ⑤④ ③ ④ ③ ④ ③ Pin Number MR01 MR02 MR18
* ②① ②① CH1 CH2 ②① CH18 Bias Magnet TMR Sensor Block Diagram (Top View) Pin No. 1 2 3 4 5 Symbol VO+
