TMR6209 Datasheet - MultiDimension

9-Channels TMR Magnetic Pattern Recognition Sensor

TMR6209 Features

* High sensitivity and excellent gap performances

* Sensitivity matching of each channel

* Output voltage is independent of scanning speed

* Differential output, high CMRR performance

* Durable metal case, suitable for long time and heavy load situations

* 10mm x 9ch detectio

TMR6209 General Description

The TMR6209 is a type of 9 channels magnetic pattern recognition sensor with high consistency, high sensitivity and high signal-to-noise ratio performance, stable magnetization and detection for high coercive force magnetic materials, it is used for detecting paper bills, bank notes and security doc.

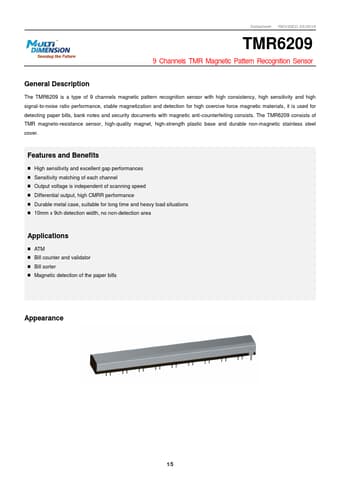

TMR6209 Datasheet (527.17 KB)

TMR6209 Datasheet Preview — Preview of TMR6209 PDF

Datasheet Details

Part number:

TMR6209

Manufacturer:

MultiDimension

File Size:

527.17 KB

Description:

9-channels tmr magnetic pattern recognition sensor.
