TMR6318C

72-Channels 180mm TMR Magnetic Image Sensors

MultiDimension

TMR6318C Features

* 1-channel analog output

* 15usec/line scanning speed

* Compact size: L191.5mm x W16mm x H19mm

* Built-in signal conditioner for each pixel

* Built-in sensitivity calibration in factory

* Auto-set each pixel’s bias voltage by SET pin

* No buil

TMR6318C General Description

The TMR6318C is a 72 pixels, 10DPI magnetic image sensor (MIS) module. It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance. The module is designed for full-scale paper bills, bank notes and security documents with magnetic materials an.

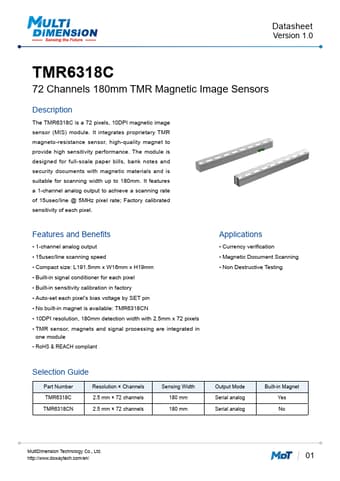

TMR6318C Datasheet (734.41 KB)

TMR6318C Datasheet Preview — Preview of TMR6318C PDF

Datasheet Details

Part number:

TMR6318C

Manufacturer:

MultiDimension

File Size:

734.41 KB

Description:

72-channels 180mm tmr magnetic image sensors.
