TMR7307-20C - Open Loop TMR Current Sensor

MultiDimension

📥 Download Datasheet

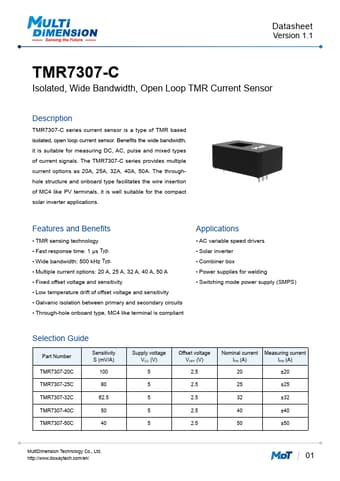

TMR7307-20C Datasheet Preview — Preview of TMR7307-20C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMR7307-20C
Manufacturer	MultiDimension
File Size	734.60 KB
Description	Open Loop TMR Current Sensor
Datasheet	TMR7307-20C-MultiDimension.pdf

TMR7307-20C Product details

Description

TMR7307-C series current sensor is a type of TMR based isolated, open loop current sensor.

Features

TMR sensing technology.
Fast response time: 1 μs Typ.
Wide bandwidth: 500 kHz Typ.
Multiple current options: 20 A, 25 A, 32 A, 40 A, 50 A.
Fixed offset voltage and sensitivity.
Low temperature drift of offset voltage and sensitivity.
Galvanic isolation between primary and secondary circuits.
Through-hole onboard type, MC4 like terminal is compliant.
