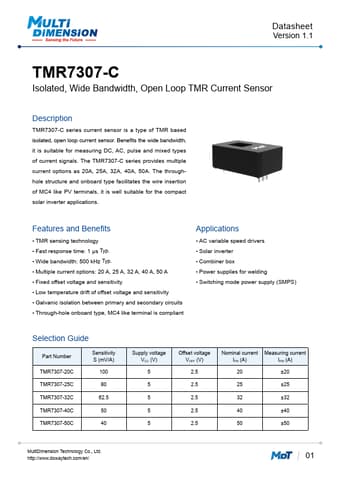

TMR7307-40C Datasheet, Sensor, MultiDimension

TMR7307-40C Features

• Sensor
• TMR sensing technology
• Fast response time: 1 μs Typ.
• Wide bandwidth: 500 kHz Typ.
• Multiple current options: 20 A, 25 A, 32 A, 40 A, 50 A

PDF File Details

Part number:

TMR7307-40C

Manufacturer:

MultiDimension

File Size:

734.60kb

Download:

📄 Datasheet

Description:

Open loop tmr current sensor. TMR7307-C series current sensor is a type of TMR based isolated, open loop current sensor. Benefits the wide bandwidth, it is suitabl

TMR7307-40C Application

• Applications Features and Benefits
• TMR sensing technology
• Fast response time: 1 μs Typ.
• Wide bandwidth: 500 kHz Typ.
