TMR7307-32C Datasheet, Sensor, MultiDimension

TMR7307-32C Features

  • Sensor
  • TMR sensing technology
  • Fast response time: 1 μs Typ.
  • Wide bandwidth: 500 kHz Typ.
  • Multiple current options: 20 A, 25 A, 32 A, 40 A, 50 A

PDF File Details

Part number:

TMR7307-32C

Manufacturer:

MultiDimension

File Size:

734.60kb

Download:

📄 Datasheet

Description:

Open loop tmr current sensor. TMR7307-C series current sensor is a type of TMR based isolated, open loop current sensor. Benefits the wide bandwidth, it is suitabl

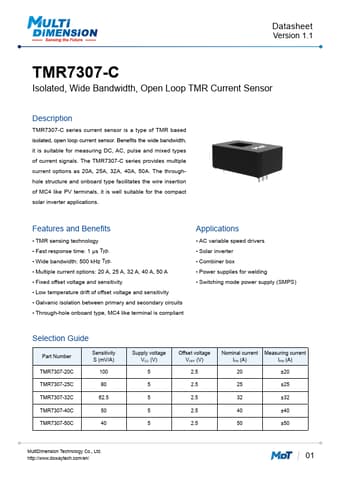

Datasheet Preview: TMR7307-32C 📥 Download PDF (734.60kb)
Page 2 of TMR7307-32C Page 3 of TMR7307-32C

TMR7307-32C Application

  • Applications Features and Benefits
  • TMR sensing technology
  • Fast response time: 1 μs Typ.
  • Wide bandwidth: 500 kHz Typ.
