TIP31C, TIP31 - High Power Bipolar Transistor

Multicomp

Datasheet Details

Part number: TIP31C, TIP31
Manufacturer: Multicomp
File Size: 238.11 KB

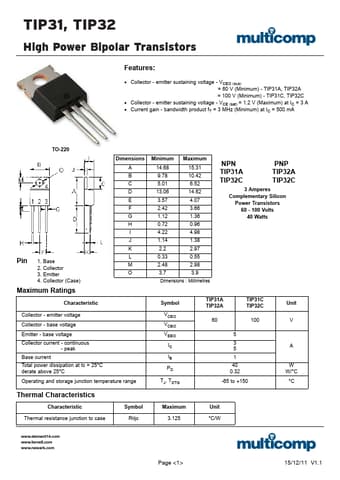

Datasheet: TIP31-Multicomp.pdf
Description: High Power Bipolar Transistor
Note: This datasheet PDF includes multiple part numbers: TIP31C, TIP31.
Please refer to the document for exact specifications by model.

Collector - emitter sustaining voltage - VCEO (sus) = 60 V (Minimum) - TIP31A, TIP32A = 100 V (Minimum) - TIP31C, TIP32C.
Collector - emitter sustaining voltage - VCE (sat) = 1.2 V (Maximum) at IC = 3 A.
Current gain - bandwidth product fT = 3 MHz (Minimum) at IC = 500 mA TO-220 Pin 1. Base 2. Collector 3. Emitter 4. Collector (Case) Maximum Ratings Dimensions A B C D E F G H I J K L M O Characteristic Collector - emitter voltage Collector - base voltage Emitt.
