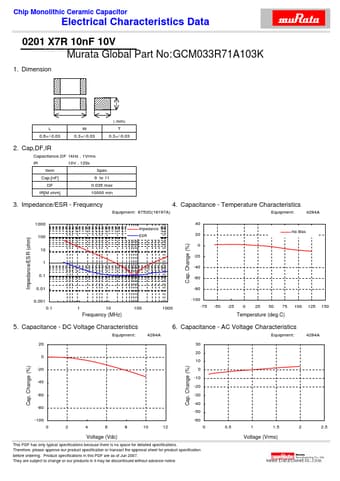

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data 0201 X7R 10nF 10V www.DataSheet4U.com Murata Global Part No: GCM033R71A103K
1. Dimension
( mm) L 0.6+/-0.03 W 0.3+/-0.03 T 0.3+/-0.03
2. Cap,DF,IR
Capacitance,DF 1kHz , 1Vrms IR Item Cap.[nF] DF IR[M ohm] 10V , 120s Spec 9 to 11 0.035 max 10000 min
3. Impedance/ESR - Frequency
Equipment: 8753D(16197A)
4. Capacitance - Temperature Characteristics
Equipment: 40
Impedance ESR
4284A
1000
Impedance/ESR (ohm)
100 10 1 0.1 0.01 0.001 0.1 1 10
20
No Bias
Cap. Change (%)
0 -20 -40 -60 -80 -100
100
1000
-75
-50
-25
0
25
50
75
100
125
150
Frequency (MHz)
Temperature (deg.C)
5. Capacitance - DC Voltage Characteristics
Equipment: 20 0 4284A
6.
