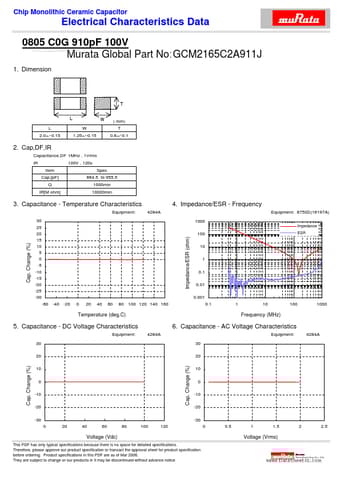

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data 0805 C0G 910pF 100V www.DataSheet4U.com Murata Global Part No: GCM2165C2A911J
1. Dimension
T L
L 2.0+/-0.15 W 1.25+/-0.15
W
( mm) T 0.6+/-0.1
2. Cap,DF,IR
Capacitance,DF 1MHz , 1Vrms IR Item Cap.[pF] Q IR[M ohm] 100V , 120s Spec 864.5 to 955.5 1000min 10000min
3. Capacitance - Temperature Characteristics
Equipment: 30 25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 -60 -40 -20 0 20 40 60 80 100 120 140 160 4284A
4. Impedance/ESR - Frequency
Equipment: 8753D(16197A) 1000
Impedance
100
ESR
Impedance/ESR (ohm)
Cap. Change (%)
10 1 0.1 0.01 0.001 0.1 1 10 100 1000
Temperature (deg.C)
Frequency (MHz)
5. Capacitance - DC Voltage Characteristics
Equipment: 30 20 4284A
6.
GCM2165C2A911J Datasheet
