LDC311G6003B-601 - Chip Multilayer Hybrid Couplers

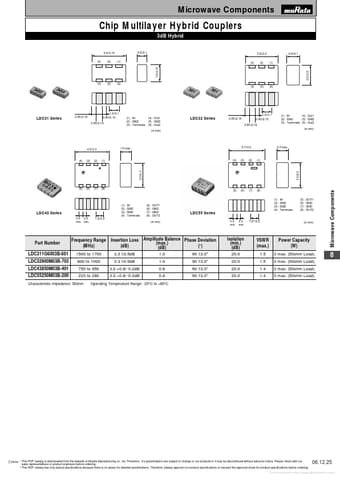

Microwave Components Chip Multilayer Hybrid Couplers 3dB Hybrid 0.9±0.1 (1) 1.6±0.15 3.2±0.15 (3) (2) 3.2±0.2 (3) (2) (1) 2.5±0.2 (4) (5) (6) 1.0±0.1 (1) : IN (2) : GND (3) : Terminate (4) : Out1 (5) : GND (6) : Out2 (in mm) 0.9±0.1 (4) (5) (6) LDC31 Series 0.35±0.15 1.0±0.1 0.45±0.15 0.55±0.15 LDC32 Series 0.35±0.15 0.45±0.15 0.55±0.15 (4) : Out1 (1) : IN (5) : GND (2) : GND (3) : Terminate (6) : Out2 (in mm) 4.5±0.3 1.2 max.
5.7±0.3 2.2 max.
(4) (3) (2) (1) (4) (3) (2) (
