LDC1001

Inductance-to-Digital Converter

LDC1001 Features

* 1 Magnet-free operation

* Sub-micron precision

* Adjustable sensing range (through coil design)

* Lower system cost

* Remote sensor placement (decoupling the LDC from harsh environments)

* High durability (by virtue of contact-less operation)

LDC1001 General Description

The LDC1001 device is a 4.75-V to 5.25-V inductance-to-digital converter designed for parallel resistance (Rp) and inductance (L) measurements. Inductive sensing technology enables precise measurement of linear or angular position of metal targets in automotive and industrial applications. Inductive.

LDC1001 Datasheet (3.33 MB)

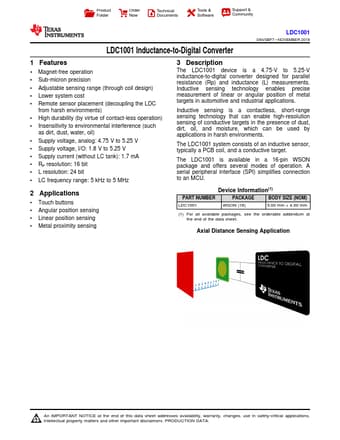

Preview of LDC1001 PDF

Datasheet Details

Part number:

LDC1001

Manufacturer:

Texas Instruments ↗

File Size:

3.33 MB

Description:

Inductance-to-digital converter.
