LDC1101

High-Speed Inductance-to-Digital Converter

Texas Instruments

LDC1101 Features

* 1 Wide Operating Voltage Range: 1.8 V to 3.3 V

* Sensor Frequency Range: 500 kHz to 10 MHz

* RP Resolution: 16-Bit

* L Resolution: 16- or 24-Bit

* 180-kSPS Conversion Rate

* Threshold Detection Functionality

* 1% Part-to-Part Variation in RP M

LDC1101 General Description

The LDC1101 is a 1.8-V to 3.3-V, high-resolution inductance-to-digital converter for short-range, highspeed, contactless sensing of position, rotation, or motion, enabling reliable, accurate measurements even in the presence of dust or dirt, making it ideal for open or harsh environments. The LDC110.

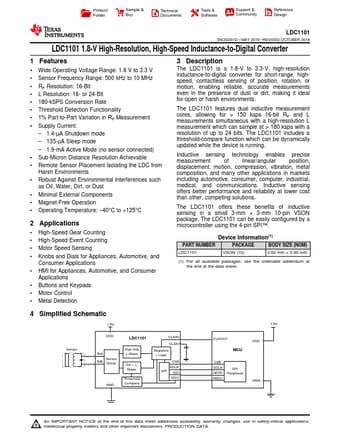

LDC1101 Datasheet (2.10 MB)

LDC1101 Datasheet Preview — Preview of LDC1101 PDF

Datasheet Details

Part number:

LDC1101

Manufacturer:

Texas Instruments ↗

File Size:

2.10 MB

Description:

High-speed inductance-to-digital converter.
