LDC1000

Inductance to Digital Converter

LDC1000 Features

* 1 Magnet-Free Operation

* Sub-Micron Precision

* Adjustable Sensing Range (Through Coil Design)

* Lower System Cost

* Remote Sensor Placement (Decoupling the LDC From Harsh Environments)

* High Durability (by Virtue of Contact-Less Operation)

LDC1000 General Description

Inductive Sensing is a contact-less, short-range sensing technology that enables low-cost, highresolution sensing of conductive targets in the presence of dust, dirt, oil, and moisture, making it extremely reliable in hostile environments. Using a coil which can be created on a PCB as a sensing elem.

LDC1000 Datasheet (3.66 MB)

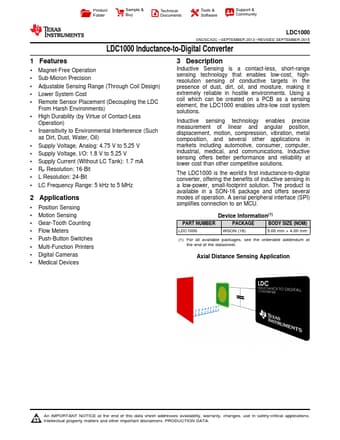

Preview of LDC1000 PDF

Datasheet Details

Part number:

LDC1000

Manufacturer:

Texas Instruments ↗

File Size:

3.66 MB

Description:

Inductance to digital converter.
