LME0305SC

Isolated 0.25W Single Output DC/DC Converter

LME0305SC Features

* RoHS compliant

* UL 94V-0 package material

* No heatsink required

* Industry standard pinout

* 1kVDC isolation

* Internal SMD construction

* Fully encapsulated with toroidal magnetics

* No external components required

* No ele

LME0305SC General Description

The LME0305SC is optimized for low-power applications and is ideally suited to generating a negative supply where only a positive rail exists. SELECTION GUIDE Order Code Nominal Input Voltage LME0305SC V 3.3 Output Voltage V 5 Output Current Efficiency mA % 50 70 Isolation Capacitance pF 25 .

LME0305SC Datasheet (89.38 KB)

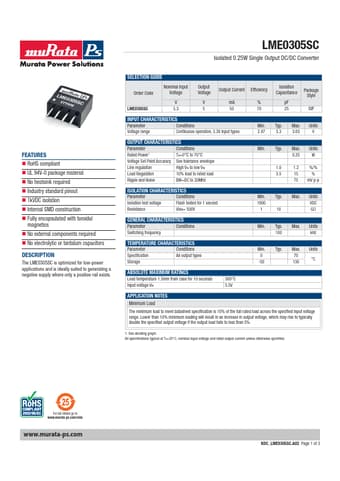

Preview of LME0305SC PDF

Datasheet Details

Part number:

LME0305SC

Manufacturer:

Murata

File Size:

89.38 KB

Description:

Isolated 0.25w single output dc/dc converter.
