LME0315

Isolated 250mW Single Output DC-DC Converters

LME0315 Features

* High Efficiency for Low Power Applications Pin Compatible with NME & NML 1kVDC Isolation SIP & DIP Package Styles Single Output Rail Power Density 0.36W/cm3 3.3V, 5V and 12V Input 3.3V, 5V, 9V, 12V and 15V Output Footprint from 0.69cm2 UL 94V-0 Package Material No Heatsink Required Internal SMD Cons

LME0315 General Description

The LME series of DC-DC converters are optimised for low-power operation. Due to the low quiescent current they are able to offer efficiencies up to 75%. The use of advanced magnetics ensures a minimal quiescent current of around 2.5mA which ensures that efficiency is maximised in low power applicat.

LME0315 Datasheet (98.36 KB)

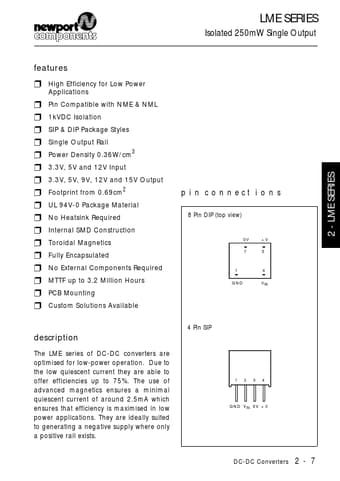

Preview of LME0315 PDF

Datasheet Details

Part number:

LME0315

Manufacturer:

Newport

File Size:

98.36 KB

Description:

Isolated 250mw single output dc-dc converters.
