Datasheet Details
Part number:
LQW15AN27NJ00B, LQW15AN27NJ00D
Manufacturer:
Murata
File Size:
94.83 KB
Description:
Inductor.
Note:
This datasheet PDF includes multiple part numbers: LQW15AN27NJ00B, LQW15AN27NJ00D.
Please refer to the document for exact specifications by model.

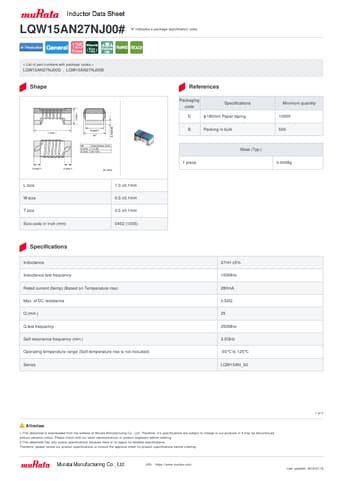

LQW15AN27NJ00B, LQW15AN27NJ00D, Inductor
LQW15AN27NJ00# “#” indicates a package specification code.
< List of part numbers with package codes > LQW15AN27NJ00D , LQW15AN27NJ00B Shape L size W size T size Size code in inch (mm) 1.0 ±0.1mm 0.5 ±0.1mm 0.5 ±0.1mm 0402 (1005) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max.
of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not included) Series Referenc
