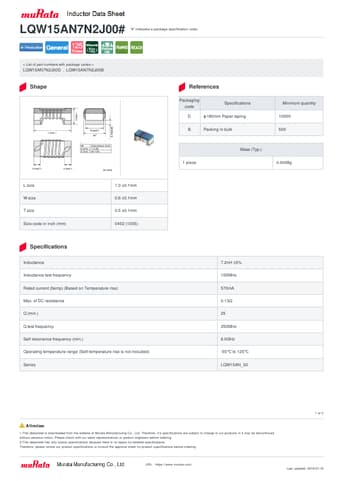

LQW15AN7N2J00D Datasheet - Murata

LQW15AN7N2J00D Inductor

LQW15AN7N2J00# “#” indicates a package specification code. < List of part numbers with package codes > LQW15AN7N2J00D , LQW15AN7N2J00B Shape L size W size T size Size code in inch (mm) 1.0 ±0.1mm 0.6 ±0.1mm 0.5 ±0.1mm 0402 (1005) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max. of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not included) Series Referenc.

LQW15AN7N2J00D-Murata.pdf
