NDL4815SC, NDL0505SC Datasheet - Murata

NDL4815SC Isolated 2W Wide Input Single Output DC/DC Converters

The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC. The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1kVDC. Continuous short circuit protection, externa.
www.murata-ps.com NDL Series Isolated 2W Wide Input Single Output DC/DC Converters SELECTION GUIDE Input Voltage V (nom.) NDL0505SC NDL0509SC NDL0512SC NDL0515SC NDL1205SC NDL1209SC NDL1212SC NDL1215SC NDL2405SC NDL2409SC NDL2412SC NDL2415SC NDL4805SC NDL4809SC NDL4812SC NDL4815SC 5 5 5 5 12 12 12 12 24 24 24 24 48 48 48 48 Order Code Rated Output Voltage V 5 9 12 15 5 9 12 15 5 9 12 15 5 9 12 15 Output Current 1 Min Load 3 mA 100 55 42 33 100 55 42 33 100 55 42 33 100 55 42 33 Input Curren.

NDL4815SC Features

*  RoHS compliant

*  2:1 wide range voltage input

*  Continuous short circuit protection with current foldback

*  Operating temperature range -40ºC to 85ºC

*  0.75% regulation

*  1kVDC Isolation

*  Efficiency to 83%

*  Power density 0.9W

NDL0505SC-Murata.pdf

This datasheet PDF includes multiple part numbers: NDL4815SC, NDL0505SC. Please refer to the document for exact specifications by model.

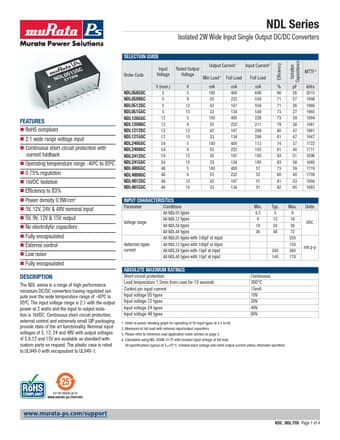

NDL4815SC Datasheet Preview Page 2 NDL4815SC Datasheet Preview Page 3
