NDL16PFJ - 1Gb (x16) - DDR3/3L Synchronous DRAM

Datasheet Summary

Features

  • including full backward compatibility to DDR3. All of the control and address inputs are synchronized with a pair of externally supplied differential clocks and inputs are latched at the cross point of differential clocks (CK rising and CK# falling). All I/Os are synchronized with differential DQS pair in a source synchronous fashion. These devices operate with a single +1.35V -0.067.

📥 Download Datasheet

Datasheet preview – NDL16PFJ

Datasheet Details

Part number NDL16PFJ
Manufacturer Insignis
File Size 2.41 MB
Description 1Gb (x16) - DDR3/3L Synchronous DRAM
Datasheet download datasheet NDL16PFJ Datasheet

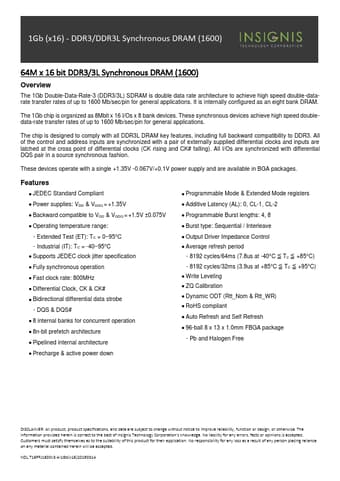

Additional preview pages of the NDL16PFJ datasheet.

📁 Similar Datasheet

  • NDL1205SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1209SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1212SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1215SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0505SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0509SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0512SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0515SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL2405SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL2409SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
Other Datasheets by Insignis
  • NDL28P - 2Gb (x8) DDR3L Synchronous DRAM

Full PDF Text Transcription

Click to expand full text
1Gb (x16) - DDR3/DDR3L Synchronous DRAM (1600) Preliminary Datasheet 64M x 16 bit DDR3/3L Synchronous DRAM (1600) Overview The 1Gb Double-Data-Rate-3 (DDR3/3L) SDRAM is double data rate architecture to achieve high speed double-datarate transfer rates of up to 1600 Mb/sec/pin for general applications. It is internally configured as an eight bank DRAM. The 1Gb chip is organized as 8Mbit x 16 I/Os x 8 bank devices. These synchronous devices achieve high speed doubledata-rate transfer rates of up to 1600 Mb/sec/pin for general applications. The chip is designed to comply with all DDR3L DRAM key features, including full backward compatibility to DDR3.
