NDL0505SC - Isolated 2W Wide Input Single Output DC/DC Converters

NDL0505SC Description

www.murata-ps.com NDL Series Isolated 2W Wide Input Single Output DC/DC Converters SELECTION GUIDE Input Voltage V (nom.) NDL0505SC NDL0509SC NDL0512.
The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC.

NDL0505SC Features

*  RoHS compliant
*  2:1 wide range voltage input
*  Continuous short circuit protection with current foldback
*  Operating temperature range -40ºC to 85ºC
*  0.75% regulation
*  1kVDC Isolation
*  Efficiency to 83%
*  Power density 0.9W

📥 Download Datasheet

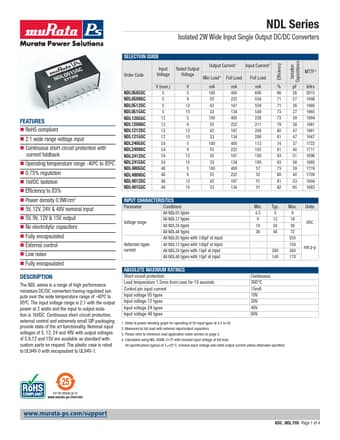

Preview of NDL0505SC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NDL0505SC
Manufacturer
Murata
File Size
107.82 KB
Datasheet
NDL0505SC-Murata.pdf
Description
Isolated 2W Wide Input Single Output DC/DC Converters
