NDL0509SC

Isolated 2W Wide Input Single Output DC/DC Converters

NDL0509SC Features

*  RoHS compliant

*  2:1 wide range voltage input

*  Continuous short circuit protection with current foldback

*  Operating temperature range -40ºC to 85ºC

*  0.75% regulation

*  1kVDC Isolation

*  Efficiency to 83%

*  Power density 0.9W

NDL0509SC General Description

The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC. The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1kVDC. Continuous short circuit protection, externa.

NDL0509SC Datasheet (107.82 KB)

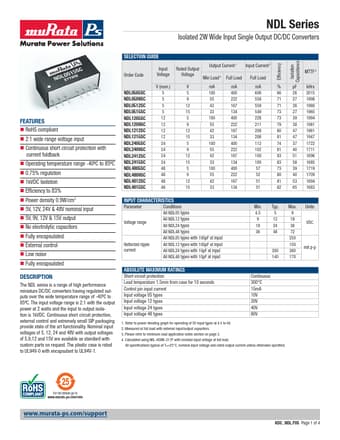

Preview of NDL0509SC PDF

Datasheet Details

Part number:

NDL0509SC

Manufacturer:

Murata

File Size:

107.82 KB

Description:

Isolated 2w wide input single output dc/dc converters.
www.murata-ps.com NDL Series Isolated 2W Wide Input Single Output DC/DC Converters SELECTION GUIDE Input Voltage V (nom.) NDL0505SC NDL0509SC NDL0512.
