SCA100T - DUAL AXIS INCLINOMETER

Product Overview

Murata

Datasheet Details

Part number	SCA100T
Manufacturer	Murata
File Size	703.48 KB
Description	DUAL AXIS INCLINOMETER
Datasheet	SCA100T Datasheet

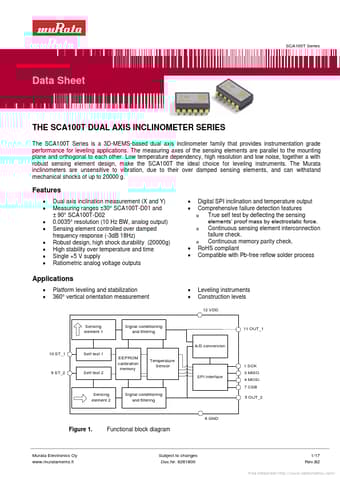

Additional preview pages of the SCA100T datasheet.

Product details

Description

9 2.1 2.2 2.3 2.4 2.5 2.6 2.7 Measuring Directions 9 Voltage to Angle Conversion 9 Ratiometric Output 10 SPI Serial Interface 10 Digital Output to Angle Conversion 12 Self Test and Failure Detection Modes 13 Temperature Measurement 14 3 Application Information 15 3.1 3.2 Recommended Circuit Diagrams and Printed Circuit Board Layouts 15 Recommended Printed Circuit Board Footprint 16 4 Mechanical Specifications and Reflow Soldering 16 4.1 4.2 Mechanical Specifications (Reference only) 16

Features

Dual axis inclination measurement (X and Y) Measuring ranges ±30° SCA100T-D01 and ± 90° SCA100T-D02 0.0035° resolution (10 Hz BW, analog output) Sensing element controlled over damped frequency response (-3dB 18Hz) Robust design, high shock durability (20000g) High stability over temperature and time Single +5 V supply Ratiometric analog voltage outputs.
Digital SPI inclination and temperature output Comprehensive failure detection featu.
