SCA103T - DIFFERENTIAL INCLINOMETER

Product Overview

Murata

Datasheet Details

Part number	SCA103T
Manufacturer	Murata
File Size	783.30 KB
Description	DIFFERENTIAL INCLINOMETER
Datasheet	SCA103T Datasheet

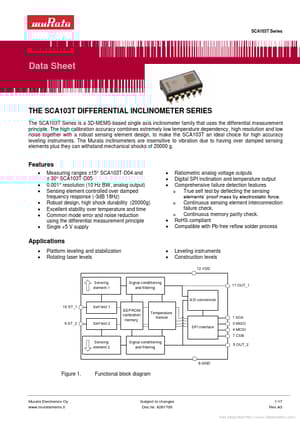

Additional preview pages of the SCA103T datasheet.

Product details

Description

8 2.1 2.2 2.3 2.4 2.5 2.6 2.7 Differential Measurement 8 Voltage to Angle Conversion 9 Ratiometric Output 10 SPI Serial Interface 10 Digital Output to Angle Conversion 12 Self Test and Failure Detection Modes 13 Temperature Measurement 14 3 Application Information 15 3.1 3.2 Recommended Circuit Diagrams and Printed Circuit Board Layouts 15 Recommended Printed Circuit Board Footprint 16 4 Mechanical Specifications and Reflow Soldering 16 4.1 4.2 Mechanical Specifications (Reference only

Features

Measuring ranges ±15° SCA103T-D04 and ± 30° SCA103T-D05 0.001° resolution (10 Hz BW, analog output) Sensing element controlled over damped frequency response (-3dB 18Hz) Robust design, high shock durability (20000g) Excellent stability over temperature and time Common mode error and noise reduction using the differential measurement principle Single +5 V supply.
Ratiometric analog voltage outputs Digital SPI inclination and temperature o.
