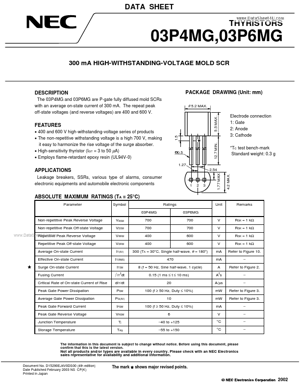

datasheet Preview Page 1 from Datasheet4u.com

03P4MG 300 mA HIGH-WITHSTANDING-VOLTAGE MOLD SCR

DATA SHEET THYRISTORS 03P4MG,03P6MG 300 mA HIGH-WITHSTANDING-VOLTAGE MOLD SCR .
The 03P4MG and 03P6MG are P-gate fully diffused mold SCRs with an average on-state current of 300 mA.

03P4MG_NEC.pdf

03P4MG Datasheet Preview — Preview of 03P4MG PDF

Datasheet Details

Part number:

03P4MG

Manufacturer:

NEC

File Size:

189.46 KB

Description:

300 mA HIGH-WITHSTANDING-VOLTAGE MOLD SCR

Features

* 400 and 600 V high-withstanding-voltage series of products
* The non-repetitive withstanding voltage is a high 700 V, making it easy to harmonize the rise voltage of the surge absorber.
* High-sensitivity thyristor (IGT = 3 to 50 µA)
* Employs flame-retardant epoxy

Applications

* Leakage breakers, SSRs, various type of alarms, consumer electronic equipments and automobile electronic components 1 2 3 2.54 4.2 MAX. ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Parameter Symbol 03P4MG Non-repetitive Peak Reverse Voltage Non-repetitive Peak Off-state Voltage www. DataSheet4U. com Repetit
