Part number: 03P6MG
Manufacturer: NEC
File Size: 189.46KB
Download: 📄 Datasheet
Description: (03P4MG / 03P6MG) 300 mA HIGH-WITHSTANDING-VOLTAGE MOLD SCR
* 400 and 600 V high-withstanding-voltage series of products
* The non-repetitive withstanding voltage is a high 700 V, making it easy to harmonize the rise volta.
Leakage breakers, SSRs, various type of alarms, consumer electronic equipments and automobile electronic components
1 2 .
The 03P4MG and 03P6MG are P-gate fully diffused mold SCRs with an average on-state current of 300 mA. The repeat peak off-state voltages (and reverse voltages) are 400 and 600 V.
PACKAGE DRAWING (Unit: mm)
φ 5.2 MAX.
FEATURES
* 400 and 600 V hi.
Image gallery
TAGS
📁 Related Datasheet
03P2J - SCR Thyristor
(Kexin)
SMD Type
SCR Thyristor 03P2J/03P4J/03P5J
Thyristor
■ Features
● High Anode to Cathode Voltage VDRM,VRRM=200V(03P2J) VDRM,VRRM=400V(03P4J) VDRM,VRRM.
03P2J - SCR
(NEC)
www..com
www..com
www..com
www..com
.
03P2M - DIFFUSED SCR
(NEC)
www..com
www..com
www..com
www..com
.
03P4J - SCR Thyristor
(Kexin)
SMD Type
SCR Thyristor 03P2J/03P4J/03P5J
Thyristor
■ Features
● High Anode to Cathode Voltage VDRM,VRRM=200V(03P2J) VDRM,VRRM=400V(03P4J) VDRM,VRRM.
03P4J - SCR
(NEC)
www..com
www..com
www..com
www..com
.
03P4M - DIFFUSED SCR
(NEC)
www..com
www..com
www..com
www..com
.
03P4MG - (03P4MG / 03P6MG) 300 mA HIGH-WITHSTANDING-VOLTAGE MOLD SCR
(NEC)

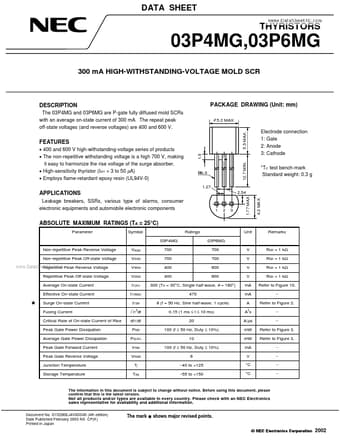

DATA SHEET
