2SC5179 - NPN TRANSISTOR

2SC5179 Description

DATA SHEET SILICON TRANSISTOR 2SC5179 NPN EPITAXIAL SILICON TRANSISTOR IN SMALL MINI-MOLD PACKAGE FOR LOW-NOISE MICROWAVE AMPLIFICATION .

2SC5179 Features

* Low current consumption and high gain |S21e|2 = 9 dB TYP. @ VCE = 2 V, IC = 7 mA, f = 2 GHz |S21e|2 = 8.5 dB TYP. @ VCE = 1 V, IC = 5 mA, f = 2 GHz
* Small Mini-Mold package EIAJ: SC-70 PACKAGE DIMENSIONS (Units: mm) 2.1±0.1 1.25±0.1 2.0±0.2 +0.1 0.3
* 0 0.65 ORDERING IN

📥 Download Datasheet

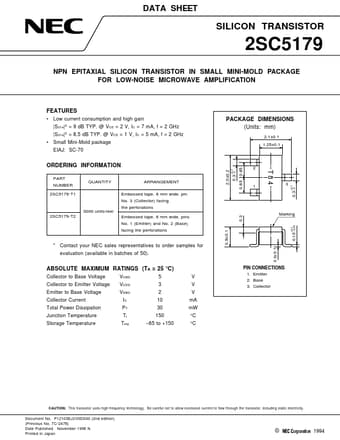

Preview of 2SC5179 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5179
Manufacturer
NEC
File Size
57.85 KB
Datasheet
2SC5179_NEC.pdf
Description
NPN TRANSISTOR
