2SK2724 - SWITCHING N-CHANNEL POWER MOS FET

2SK2724 Description

DATA SHEET MOS FIELD EFFECT POWER TRANSISTORS 2SK2724 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications.

2SK2724 Features

* Low On-Resistance 3 ±0.1 4 ±0.2 12.0 ±0.2 13.5 MIN. RDS(on)1 = 27 mΩ Max. (VGS = 10 V, ID = 18 A) RDS(on)2 = 40 mΩ Max. (VGS = 4 V, ID = 18 A)
* Low Ciss Ciss =1 200 pF Typ.
* Built-in G-S Protection Diode
* Isolated TO-220 package 15.0 ±0.3 0.7 ±0.1 2.54 1.3 ±0

📥 Download Datasheet

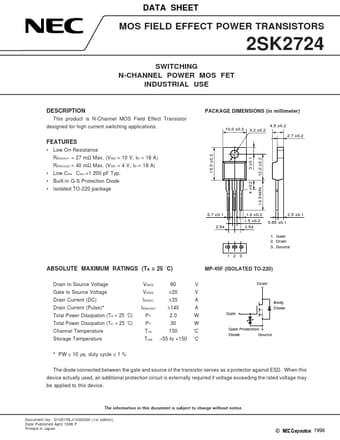

Preview of 2SK2724 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2724
Manufacturer
NEC
File Size
83.89 KB
Datasheet
2SK2724_NEC.pdf
Description
SWITCHING N-CHANNEL POWER MOS FET
