2SK3105 - N-Channel MOSFET

Description

The 2SK3105 is a switching device which can be driven directly by a 4 V power source.

Features

  • a low on-state resistance and excellent switching characteristics, and is suitable for.

📥 Download Datasheet

Datasheet Details

Part number 2SK3105
Manufacturer NEC
File Size 62.17 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK3105 Datasheet

📁 Similar Datasheet

  • 2SK310 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK310 - (2SK310 / 2SK311) SILICON N-CHANNEL MOS FET (Hitachi Semiconductor)
  • 2SK3101 - N-Channel 550V Power MOSFET (VBsemi)
  • 2SK3101LS - N-Channel Silicon MOSFET (Sanyo)
  • 2SK3102-01R - MOSFET / Power MOSFETs (Fuji Semiconductors)
  • 2SK3107C - N-CHANNEL MOSFET (Renesas)
  • 2SK3109-AZ - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK311 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK311 - (2SK310 / 2SK311) SILICON N-CHANNEL MOS FET (Hitachi Semiconductor)
  • 2SK3115B - N-CHANNEL POWER MOSFET (Renesas)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

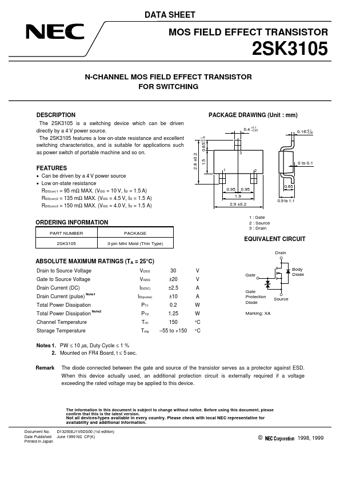

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3105 N-CHANNEL MOS FIELD EFFECT TRANSISTOR FOR SWITCHING DESCRIPTION The 2SK3105 is a switching device which can be driven directly by a 4 V power source. The 2SK3105 features a low on-state resistance and excellent switching characteristics, and is suitable for applications such as power switch of portable machine and so on. PACKAGE DRAWING (Unit : mm) 0.4 +0.1 –0.05 0.16+0.1 –0.06 0.65–0.15 +0.1 2.8 ±0.2 3 1.5 0 to 0.1 1 2 FEATURES • Can be driven by a 4 V power source • Low on-state resistance RDS(on)1 = 95 mΩ MAX. (VGS = 10 V, ID = 1.5 A) RDS(on)2 = 135 mΩ MAX. (VGS = 4.5 V, ID = 1.5 A) RDS(on)3 = 150 mΩ MAX. (VGS = 4.0 V, ID = 1.5 A) 0.95 0.95 0.65 0.9 to 1.1 1.9 2.9 ±0.
