2SK4075 - MOS FIELD EFFECT TRANSISTOR

NEC

📥 Download Datasheet

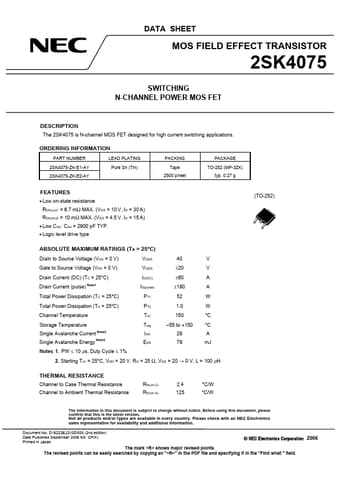

2SK4075 Datasheet Preview — Preview of 2SK4075 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 2SK4075
Manufacturer: NEC
File Size: 155.97 KB
Datasheet: 2SK4075-NEC.pdf
Description: MOS FIELD EFFECT TRANSISTOR

2SK4075 Product details

Description

The 2SK4075 is N-channel MOS FET designed for high current switching applications.

Features

Low on-state resistance RDS(on)1 = 6.7 mΩ MAX. (VGS = 10 V, ID = 30 A) RDS(on)2 = 10 mΩ MAX. (VGS = 4.5 V, ID = 15 A).
Low Ciss: Ciss = 2900 pF TYP.
Logic level drive type.
