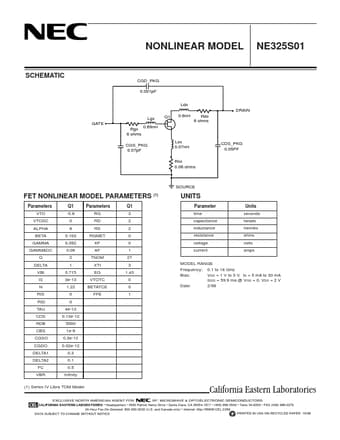

325S01 NONLINEAR MODEL

NONLINEAR MODEL SCHEMATIC NE325S01 CGD_PKG 0.001pF Ldx DRAIN Lgx GATE Rgx 6 ohms 0.69nH Lsx 0.07nH Rsx 0.06 ohms Q1 0.6nH Rdx 6 ohms CGS_PKG 0.07pF CDS_PKG 0.05PF SOURCE FET NONLINEAR MODEL PARAMETERS (1) Parameters VTO VTOSC ALPHA BETA GAMMA GAMMADC Q DELTA VBI IS N RIS RID TAU CDS RDB CBS CGSO CGDO DELTA1 DELTA2 FC VBR Q1 -0.8 0 8 0.103 0.092 0.08 2 1 0.715 3e-13 1.22 0 0 4e-12 0.13e-12 5000 1e-9 0.3e-12 0.02e-12 0.3 0.1 0.5 Infinity Parameters RG RD RS RGMET KF AF TNOM XTI EG VTOTC BETA.

325S01 Datasheet (26.00 KB)

325S01 Datasheet Preview — Preview of 325S01 PDF

Datasheet Details

Part number:

325S01

Manufacturer:

NEC

File Size:

26.00 KB

Description:

Nonlinear model.
