D75518 UPD75518

D75518 Description

DATA SHEET MOS INTEGRATED CIRCUIT ELECTRON DEVICE µPD75518(A) 4 BIT SINGLE-CHIP MICROCOMPUTER The µPD75518(A) is a 75X series four-bit single-chip .

D75518 Features

* Higher reliable than the µPD75518 Capacities of program memory, ROM: 32640 × 8 bits Capacity of data memory, RAM: 1024 × 4 bits Function for specifying the instruction execution time (useful for high-speed operation and saving power)
* 0.67 µs/1.33 µ

D75518 Applications

* Controller of electric parts of automobiles ORDERING INFORMATION Part number Package 80-pin plastic QFP (14 mm × 20 mm) Quality grade Special µPD75518GF(A)-×××-3B9 Remark ×××: Code number Please refer to “Quality Grade on NEC Semiconductor Devices” (Document number IEI-1209) published by NEC Corp

📥 Download Datasheet

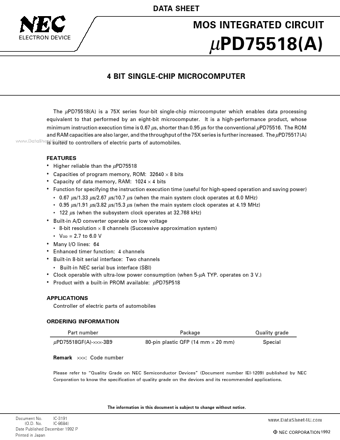

Preview of D75518 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D75518
Manufacturer
NEC
File Size
1.39 MB
Datasheet
D75518_NEC.pdf
Description
UPD75518
