EB2-5NU, EB2, COMPACT AND LIGHT WEIGHT SURFACE MOUNTING TYPE

DATA S H E E T MINIATURE SIGNAL RELAY EB2 SERIES COMPACT AND LIGHT WEIGHT SURFACE MOUNTING TYPE .
The EB2 series is a version of the EA2 series, suitable for surface mounting with infrared soldering (lRS) and vapor phase soldering (VPS).

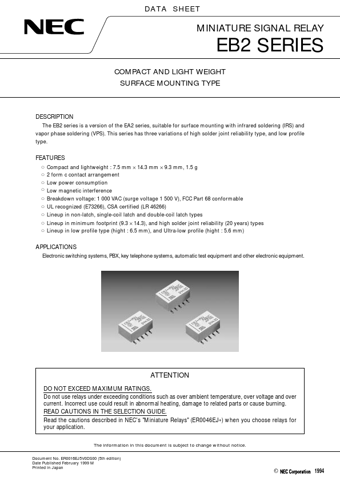

datasheet Preview Page 1 from Datasheet4u.com

EB2.pdf

EB2-5NU Datasheet Preview — This datasheet PDF includes multiple part numbers: EB2-5NU, EB2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EB2-5NU, EB2

Manufacturer:

NEC

File Size:

113.29 KB

Description:

COMPACT AND LIGHT WEIGHT SURFACE MOUNTING TYPE

Note:

This datasheet PDF includes multiple part numbers: EB2-5NU, EB2.
Please refer to the document for exact specifications by model.

Features

* ™ Compact and lightweight : 7.5 mm × 14.3 mm × 9.3 mm, 1.5 g ™ 2 form c contact arrangement ™ Low power consumption ™ Low magnetic interference ™ Breakdown voltage: 1 000 VAC (surge voltage 1 500 V), FCC Part 68 conformable ™ UL recognized (E73266), CSA certified (LR 46266) ™ Lineup in non-latch, si

Applications

* Electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment. ATTENTION DO NOT EXCEED MAXIMUM RATINGS. Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over current. Incorrect use could result in abn
