EF2-5S, EF2, Ultra-low power/ compact and lightweight/ High breakdown voltage/ Surface mounting type

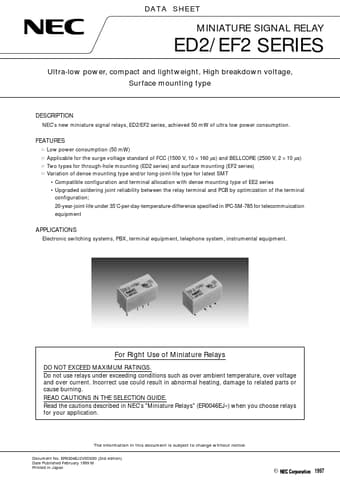

DATA S H E E T MINIATURE SIGNAL RELAY ED2/EF2 SERIES Ultra-low power, compact and lightweight, High breakdown voltage, Surface mounting type DESCRI.
NEC's new miniature signal relays, ED2/EF2 series, achieved 50 mW of ultra low power consumption.

datasheet Preview Page 1 from Datasheet4u.com

EF2-01.pdf

EF2-5S Datasheet Preview — This datasheet PDF includes multiple part numbers: EF2-5S, EF2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EF2-5S, EF2

Manufacturer:

NEC

File Size:

159.59 KB

Description:

Ultra-low power/ compact and lightweight/ High breakdown voltage/ Surface mounting type

Note:

This datasheet PDF includes multiple part numbers: EF2-5S, EF2.
Please refer to the document for exact specifications by model.

Features

* ™ Low power consumption (50 mW) ™ Applicable for the surge voltage standard of FCC (1500 V, 10 × 160 µs) and BELLCORE (2500 V, 2 × 10 µs) ™ Two types for through-hole mounting (ED2 series) and surface mounting (EF2 series) ™ Variation of dense mounting type and/or long-joint-life type for latest SMT

Applications

* Electronic switching systems, PBX, terminal equipment, telephone system, instrumental equipment. For Right Use of Miniature Relays DO NOT EXCEED MAXIMUM RATINGS. Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over current. Incorrect use could result
